You are here: ELETTROPOMPE MOTOPOMPE GRUPPI DI PRESSURIZZAZIONE > Sub pumps and submersible motors > Dab - Electric submersible pumps > Dab - 6GF 6GX TR6:10 submersible motors

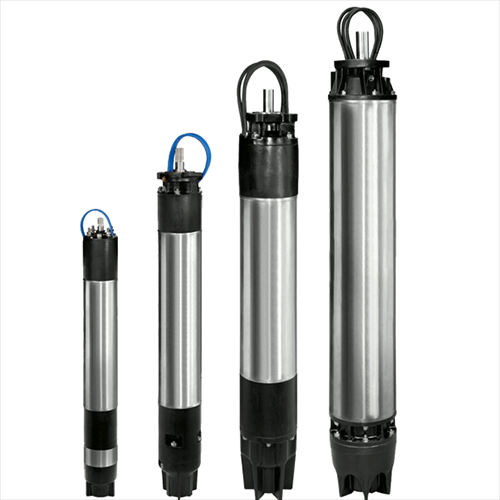

Product: Dab - 6GF 6” submersed electric motor - Dab - 6GF 6GX TR6:10 submersible motors

click to zoom the image

Water lifting, pressurisation, water boosting

Dab 6GF submersible asynchronous two-pole electric motors.

6” submersed electric motor, asynchronous 2-pole in water & glycol bath.

This professional motor finds a wide application in industrial sectors and in water systems.

Main features:

NEMA - 6” flanging;

Kingsbury self-centring thrust bearing.

Insulation class: F.

Protection class: IP68.

Cooling flow speed: min. 0,3 m/s 35 °C.

Power supply tolerance: + 6 % / -10 %.

Max. starts: 25/h.

Max operating depth: 300 m.

Horizontal operation: 5,5 HP - 50 HP.

Available the Star-Delta 6GF Dab motor and the 6GX Dab stainless-steel motor.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

	kW	Hp
Type	Power		Volts	Ampere	Maximum immersion depth (m)	Rpm min'	Height (mm)	Diameter (mm)		VAT EXCLUDED
	kW	Hp
6GF 4,00KW	4,00	5,50	3x400	10,60	150	2845	600	143	4 gg	Sconto 35 % € 1.137,30 € 739,25	Not available
6GF 5,50KW	5,50	7,50	3x400	14,00	150	2845	631	143	4 gg	Sconto 35 % € 1.175,04 € 763,78	Not available
6GF 7,50KW	7,50	10,00	3x400	18,00	150	2840	631	143	4 gg	Sconto 35 % € 1.239,30 € 805,55	Not available
6GF 9,20KW	9,20	12,50	3x400	22,00	150	2840	685	143	4 gg	Sconto 35 % € 1.327,02 € 862,56	Not available
6GF. 11,00KW	11,00	15,00	3x400	25,50	150	2870	737	143	4 gg	Sconto 35 % € 1.381,08 € 897,70	Not available
6GF. 15,00KW	15,00	20,00	3x400	33,40	150	2840	785	143	3 gg	Sconto 35 % € 1.628,94 € 1.058,81	Not available
6GF. 18,50KW	18,50	25,00	3x400	41,00	150	2845	860	143	4 gg	Sconto 35 % € 1.726,86 € 1.122,46	Not available
6GF. 22,00KW	22,00	30,00	3x400	47,00	150	2825	920	143	3 gg	Sconto 35 % € 1.943,10 € 1.263,02	Not available
6GF. 30,00KW	30,00	40,00	3x400	61,50	150	2830	1050	143	6 gg	Sconto 35 % € 2.526,54 € 1.642,25	Not available
6GF. 37,00KW	37,00	50,00	3x400	79,30	150	2830	1180	143	6 gg	Sconto 35 % € 3.362,94 € 2.185,91	Not available
