You are here: ELETTROPOMPE MOTOPOMPE GRUPPI DI PRESSURIZZAZIONE > Sub pumps and submersible motors > Dab - Electric submersible pumps > Dab - 6GF 6GX TR6:10 submersible motors

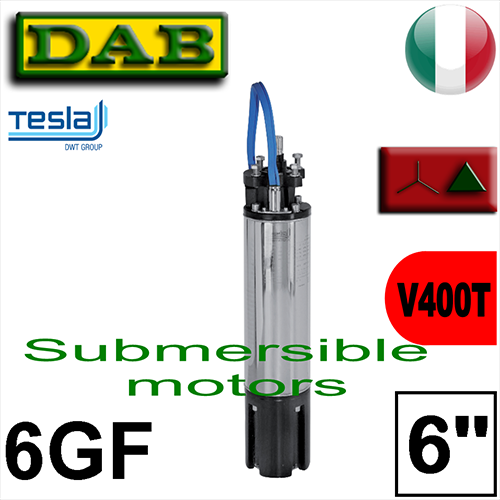

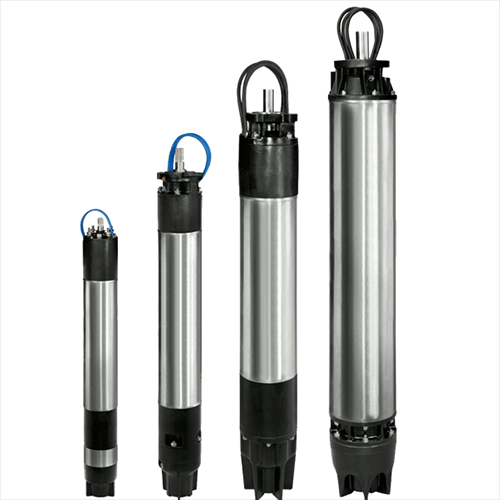

Product: Pos.06 Dab - 6GFST submersible motor - Dab - 6GF 6GX TR6:10 submersible motors

click to zoom the image

Water lifting, pressurisation, water boosting

6GF Dab submersible motor with STAR DELTA starter.

6” submersed electric motor, asynchronous 2-pole in water and glycol bath.

This professional motor finds a wide application in industrial sectors and in water systems.

Main features:

NEMA - 6” flanging;
STAR-DELTA motor starter

Kingsbury self-centring thrust bearing.

Insulation class: F.

Protection class: IP68.

Cooling flow speed: min. 0,3 m/s 35 °C.

Power supply tolerance: + 6 % / -10 %.

Max. starts: 25/h.

Max operating depth: 300 m.

Horizontal operation: 5,5 HP - 50 HP.

Available on request the stainless steel AISI 316 version.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

	kW	Hp
Model	Power		Volts	Ampere	Max. immersion depth (m)	Rpm	Height (mm)	Diameter (mm)		VAT EXCLUDED
	kW	Hp
6GFST 4,00KW	4,00	5,50	3x400	10,60	150	2845	600	143	4 gg	Sconto 35 % € 1.235,22 € 802,89	Not available
6GFST 5,50KW	5,50	7,50	3x400	14,00	150	2845	631	143	4 gg	Sconto 35 % € 1.272,96 € 827,42	Not available
6GFST 7,50KW	7,50	10,00	3x400	18,00	150	2840	631	143	4 gg	Sconto 35 % € 1.337,22 € 869,19	Not available
6GFST 9,20KW	9,20	12,50	3x400	22,00	150	2840	685	143	4 gg	Sconto 35 % € 1.424,94 € 926,21	Not available
6GFST. 11,00KW	11,00	15,00	3x400	25,50	150	2870	737	143	4 gg	Sconto 35 % € 1.479,00 € 961,35	Not available
6GFST. 15,00KW	15,00	20,00	3x400	33,40	150	2840	785	143	3 gg	Sconto 35 % € 1.726,86 € 1.122,46	Not available
6GFST. 18,50KW	18,50	25,00	3x400	41,00	150	2845	860	143	4 gg	Sconto 35 % € 1.845,18 € 1.199,37	Not available
6GFST. 22,00KW	22,00	30,00	3x400	47,00	150	2825	920	143	3 gg	Sconto 35 % € 2.061,42 € 1.339,92	Not available
6GFST. 30,00KW	30,00	40,00	3x400	61,50	150	2830	1050	143	6 gg	Sconto 35 % € 2.675,46 € 1.739,05	Not available
6GFST. 37,00KW	37,00	50,00	3x400	79,30	150	2830	1180	143	6 gg	Sconto 35 % € 3.511,86 € 2.282,71	Not available
