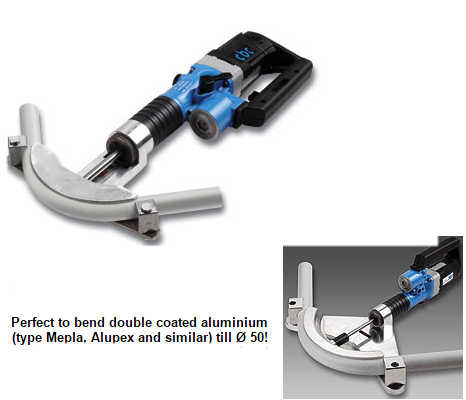

OB/2003 E Electrahydraulic bender
Electrohydraulic bending machine to bend: annealed copper pipes up to Ø 22, stainless/ bonderized steel pipes up to Ø 22 and multilayer pipes up to Ø 50.
All accessories are usable for OB/855 bender and OB/KIT.
The bender OB2003E is suitable to bend double coated aluminium (type Mepla,Alupex and similar) from Ø 40 (R.151) till Ø 50 (R.199).
TECHNICAL FEATURES:
- Aluminium body pump.
- CEI double isolation motor 230 V 56/60 Hz - 600 W - 2,6A - RPM 600.
- Die-casted aluminium formers.
- Counterformers in galvanized steel with die-casted aluminium laterals for quick coupling.

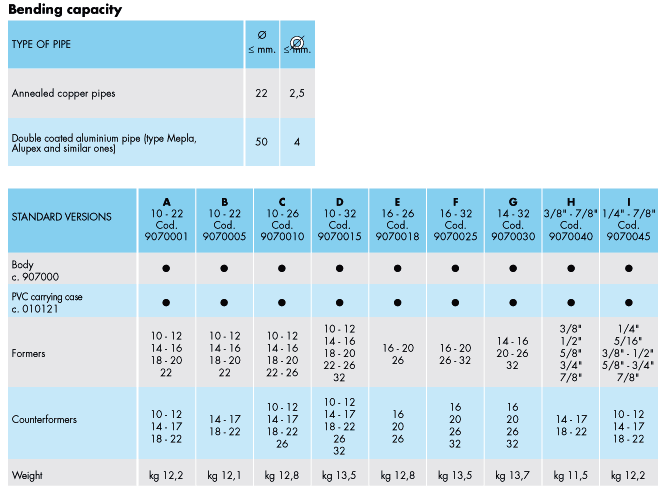

The following products models are available for purchase:
|
Model |
Description |
Formers (mm) |
Counterformers (mm) |
Weight (kg) |
|
EX VAT
|
|
|---|---|---|---|---|---|---|---|
|
OB/2003/E (9070050) |
Curvatubi elettroidraulico con kit per oleodinamica | 10 forme (6_8_10_12_14_15_16_18_20_22) | 3 controforme (10:12_14:17_18:22) | 13,0 kg |
|
|
|
|
OB/2003/E (9070055) |
Curvatubi elettroidraulico con kit per oleodinamica | 8 forme (10_12_14_15_16_18_20_22) | 3 controforme (10:12_14:17_18:22) | 12,8 kg |
|
|
|
|
OB/2003/E (9070060) |
Curvatubi elettroidraulico con kit per oleodinamica | 8 forme (1/4"_5/16"_3/8"_1/2"_5/8"_3/4"_7/8") | 3 controforme (10:12_14:17_18:22) | 12,8 kg |
|
|
