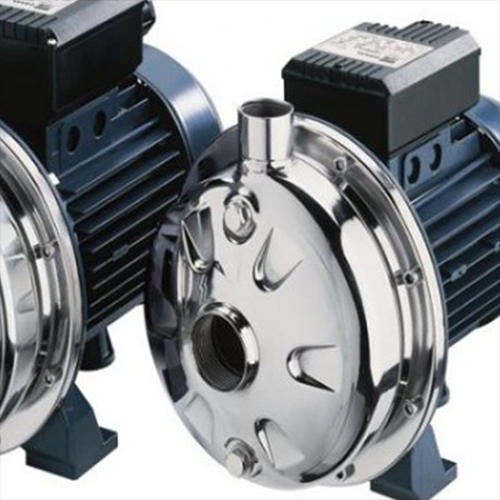

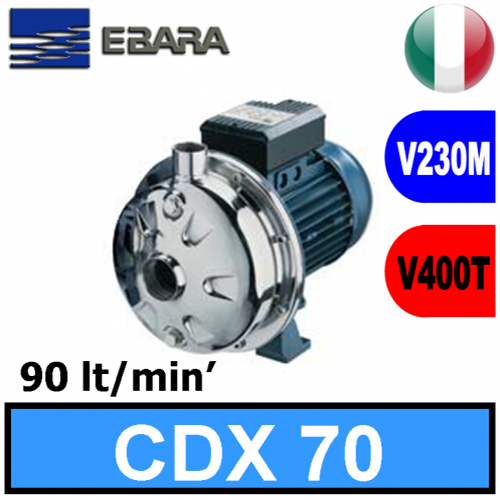

Product: Ebara CDX 70 Horizontal single-impeller electric pump in stainless steel - Ebara - Single impeller pumps in stainless steel
click to zoom the image
|
Water supply in domestic, agricultural, civil and industrial applications The design and the constructive innovations confer to this kind of pumps strength, long lasting and silent running.

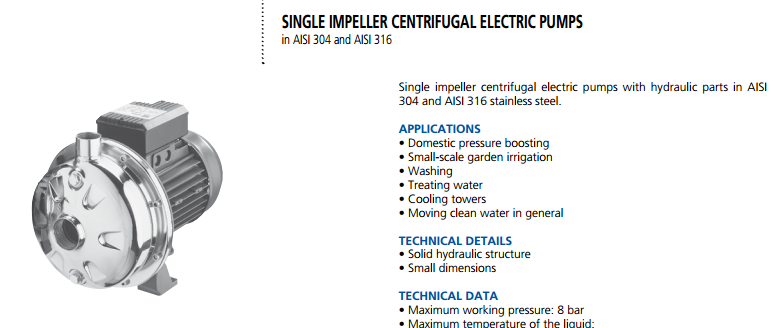

Horizontal single-impeller pumps are widely used in moving clean water in general, small-scale garden irrigation, domestic pressure boosting, washing, treating water and cooling towers.
It is advisable to protect the pump from malfunctions of the power line.
|
|||
|
Power |
Volts |
Flow Rate |
VAT |
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
kW |
Hp |
Q=l/min' |
0 |
20 |
40 |
50 |
70 |
80 |
90 |
|||||
Q=m3/h |
0 |
1,2 |
2,4 |
3 |
4,2 |
4,8 |
5,4 |
|||||||
CDX70/05 TRIFASE |
0,37 |
0,50 |
3x400 |
H=ml |
21,5 |
20,7 |
19 |
18,4 |
17 |
15,9 |
15 |
Sconto 30 % |
|
|
CDX70/07 TRIFASE |
0,55 |
0,75 |
3x400 |
H=ml |
30 |
28 |
26 |
24,5 |
22 |
20,5 |
- |
Sconto 30 % |
|
|
CDXM70/05 MONOFASE |
0,37 |
0,50 |
1x230 |
H=ml |
21,5 |
20,7 |
19 |
18,4 |
17 |
15,9 |
15 |
Sconto 30 % |
|
|
CDXM70/07 MONOFASE |
0,55 |
0,75 |
1x230 |
H=ml |
30 |
28 |
26 |
24,5 |
22 |
20,5 |
- |
Sconto 30 % |
|
