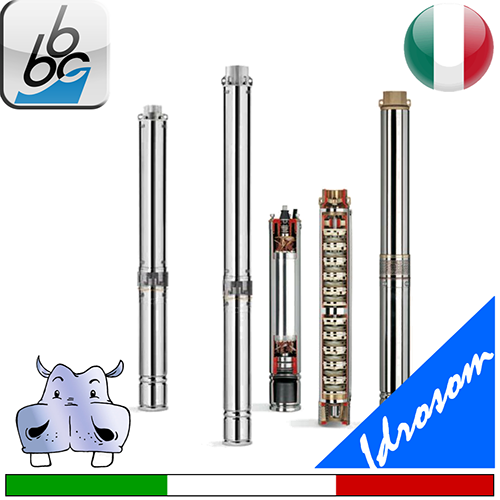

BBC - IDROSOM 250 - Electric submerged wells pumps - Hydraulics side and motor 2

BBC - IDROSOM 250 - Electric submerged wells pumps - Hydraulics side and motor 3

SCHEDA TECNICA

Richiesta informazioni veloce

Email per la risposta*

Richiesta*

Devi allegare file o foto? Usa il modulo completo

Water lifting, irrigation, water boosting

Submersible wells pumps. Suitable for civil, agricultural, industrial needs (irrigation systems, fire-fighting plants, etc.).

Main features:
The pump and the electric motor are two independent units.
Max. sand content: 150 g/m3;

Max. number of starts per hour 30;

Head and suction body Stainless steel;

Upper casing Brass OT58 for the 400 l/m series;

Suitable to operate horizontally: Pump ends up to 23/60 - 18/100 - 17/180 - 12/250 - 19/420 included; Motors up to 5,5 HP included. Construction Rewindable motor;

Eco-friendly design.

Pump and motor are shipped separately.

For more information, please contact us.

The following products models are available for purchase:

Model	Power		Volts	Flow rate									VAT EXCLUDED
	kW	Hp		Q=l/min'	0	140	160	180	200	225	250
	kW	Hp		Q=m3/h	0	8,4	9,6	10,8	12	13,5	15
IDROSOM 06-250 4ME15MONOFASE	1,10	1,50	1x230	H=ml	40	29	26	23	19	14	7	5 gg	Sconto 32 % € 594,66 € 404,37
IDROSOM 06-250 4TE15TRIFASE	1,10	1,50	3x400	H=ml	40	29	26	23	19	14	7	5 gg	Sconto 32 % € 535,50 € 364,14
IDROSOM 08-250 4ME20MONOFASE	1,50	2,00	1x230	H=ml	53	39	35	30	25	18	9	5 gg	Sconto 32 % € 656,88 € 446,68
IDROSOM 08-250 4TE20TRIFASE	1,50	2,00	3x400	H=ml	53	39	35	30	25	18	9	5 gg	Sconto 32 % € 592,62 € 402,98
IDROSOM 12-250 4M30MONOFASE	2,20	3,00	1x230	H=ml	79	58	52	45	38	27	14	5 gg	Sconto 32 % € 947,58 € 644,35
IDROSOM 12-250 4T30TRIFASE	2,20	3,00	3x400	H=ml	79	58	52	45	38	27	14	5 gg	Sconto 32 % € 733,38 € 498,70
IDROSOM 17-250 4T40TRIFASE	3,00	4,00	3x400	H=ml	112	82	74	64	54	39	19	5 gg	Sconto 32 % € 1.057,74 € 719,26
IDROSOM 22-250 4T55TRIFASE	4,00	5,50	3x400	H=ml	145	106	95	82	69	50	25	5 gg	Sconto 32 % € 1.167,90 € 794,17
IDROSOM 30-250 4T75TRIFASE	5,50	7,50	3x400	H=ml	197	144	129	112	94	68	33	5 gg	Sconto 32 % € 1.546,32 € 1.051,50
IDROSOM 40-250 4T100TRIFASE	7,50	10,00	3x400	H=ml	262	192	172	149	125	90	44	5 gg	Sconto 32 % € 1.766,64 € 1.201,32
