Water lifting, water boosting

These submersible pumps for 6 " combine high performance and reliability. The BBC 6TA pumps are able to withstand the most heavy duty operating conditions, thanks to the innovative solutions and the materials.

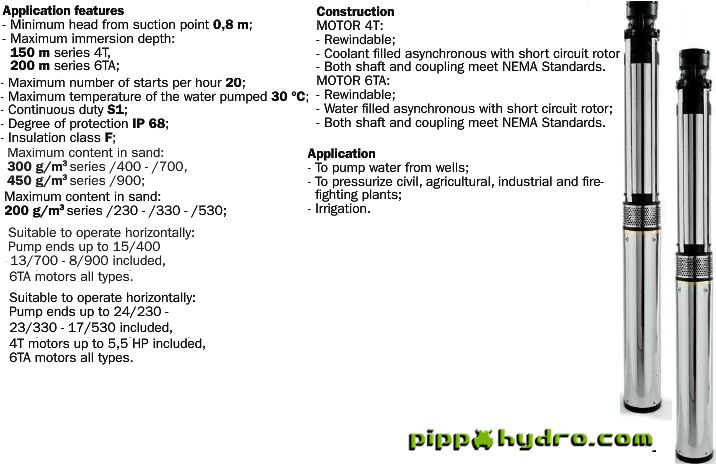

Main features:

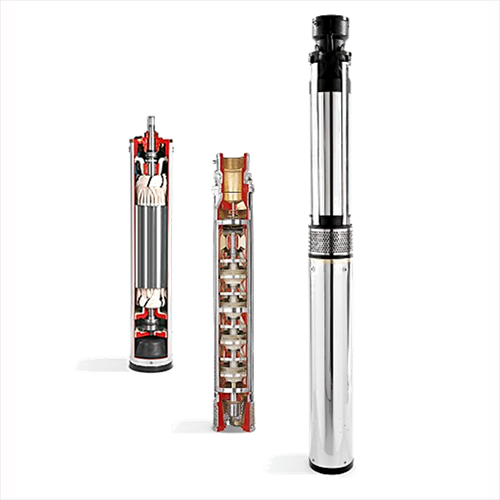

The pump and the electric motor are two independent units
Degree of protection IP 68;

Insulation class F;

Max. immersion depth: 200 m series 6TA;

Max. sand content: 100g/m3 series /230-/330-/530-/700-/900

300g/m3 series /400;

Motor: Water filled, rewindable; asynchronous with short circuit rotor; both shaft and coupling conform to NEMA

standards.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

Model	Power		Volts	Flow Rate										VAT EXCLUDED
	kW	Hp		Q=l/min'	0	210	230	245	260	280	300	330
	kW	Hp		Q=m3/h	0	12,6	13,8	14,7	15,6	16,8	18	19,8
6TA10 16-330 TRIFASE	7,50	10,00	3x400	H=ml	160	112	104	97	89	78	65	46	5 gg	Sconto 30 % € 2.254,20 € 1.577,94
6TA10 19-330 TRIFASE	7,50	10,00	3x400	H=ml	190	135	125	116	107	94	80	56	5 gg	Sconto 30 % € 2.361,30 € 1.652,91
6TA125 23-330 TRIFASE	9,20	12,50	3x400	H=ml	233	169	157	147	135	119	101	72	5 gg	Sconto 30 % € 2.523,48 € 1.766,44
6TA15 28-330 TRIFASE	11,00	15,00	3x400	H=ml	287	211	196	183	170	150	128	93	5 gg	Sconto 30 % € 2.777,46 € 1.944,22
6TA20 32-330 TRIFASE	15,00	20,00	3x400	H=ml	326	244	226	210	194	172	148	108	5 gg	Sconto 30 % € 3.348,66 € 2.344,06
6TA20 36-330 TRIFASE	15,00	20,00	3x400	H=ml	374	278	256	238	220	194	167	123	5 gg	Sconto 30 % € 3.495,54 € 2.446,88
6TA25 43-330 TRIFASE	18,50	25,00	3x400	H=ml	444	328	304	383	262	231	198	145	5 gg	Sconto 30 % € 3.930,06 € 2.751,04
6TA75 12-330 TRIFASE	5,50	7,50	3x400	H=ml	121	84	77	71	65	57	48	33	5 gg	Sconto 30 % € 2.084,88 € 1.459,42
6TA75 14-330 TRIFASE	5,50	7,50	3x400	H=ml	138	96	88	82	75	65	54	37	5 gg	Sconto 30 % € 2.132,82 € 1.492,97
