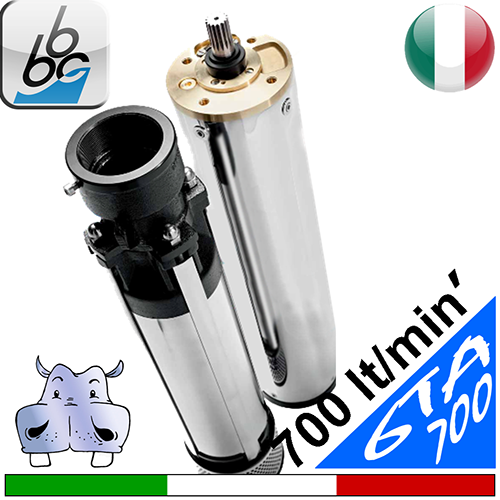

BBC - 6AT700 Irrigation submerged electric pump 1

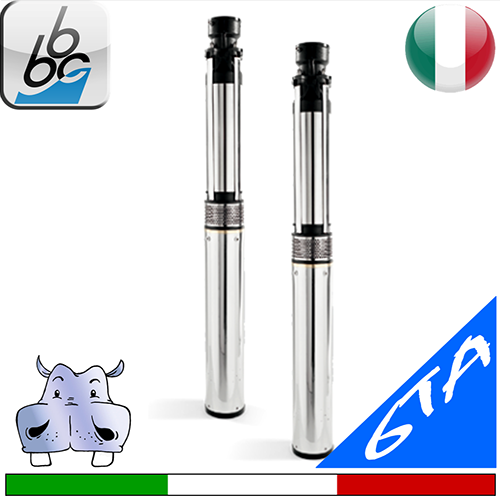

BBC - 6AT700 Irrigation submerged electric pump 2

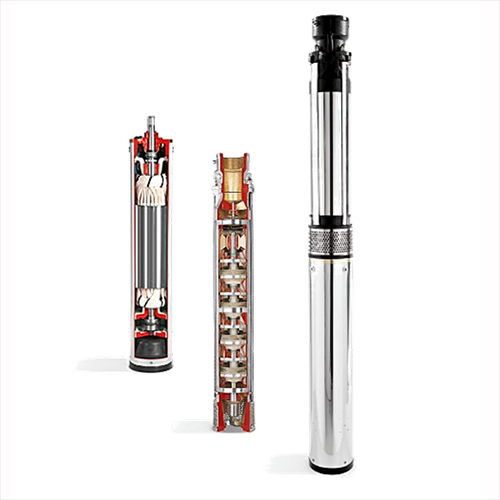

BBC - 6AT700 Irrigation submerged electric pump 3

SCHEDA TECNICA

Richiesta informazioni veloce

Email per la risposta*

Richiesta*

Devi allegare file o foto? Usa il modulo completo

Water lifting, water boosting

Submersible pumps for 6 " characterized by high performance, reliability and long lasting. The pumps are able to withstand the most heavy duty operating conditions, thanks to the materials and the innovative solutions.

Main features:
The pump and the electric motor are two independent units
Three-phase power
Max. immersion depth: 200 m series 6TA;

Max. san content: 100g/m3 series /230-/330-/530-/700-/900

300g/m3 series /400;

Degree of protection IP 68;

Insulation class F.

Motor series 6TA: Water filled, rewindable; asynchronous with short circuit rotor; both shaft and coupling conform to NEMA

standards.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

Model	Power		Volts	Flow Rate										VAT EXCLUDED
	kW	Hp		Q=l/min'	0	400	450	500	550	600	650	700
	kW	Hp		Q=m3/h	0	24	27	30	33	36	39	42
6TA10 6-700 TRIFASE	7,50	10,00	3x400	H=ml	84	59	54	48	42	34	27	17	5 gg	Sconto 30 % € 2.231,76 € 1.562,23
6TA125 8-700 TRIFASE	9,20	12,50	3x400	H=ml	113	83	76	69	60	50	40	29	5 gg	Sconto 30 % € 2.392,92 € 1.675,04
6TA15 10-700 TRIFASE	11,00	15,00	3x400	H=ml	141	104	96	86	75	62	50	36	5 gg	Sconto 30 % € 2.683,62 € 1.878,53
6TA20 13-700 TRIFASE	15,00	20,00	3x400	H=ml	170	146	135	111	104	83	64	45	5 gg	Sconto 30 % € 3.275,22 € 2.292,65
6TA25 16-700 TRIFASE	18,50	25,00	3x400	H=ml	223	164	150	134	116	96	75	54	5 gg	Sconto 30 % € 3.698,52 € 2.588,96
6TA30 19-700 TRIFASE	22,00	30,00	3x400	H=ml	270	195	179	159	137	114	89	63	5 gg	Sconto 30 % € 4.182,00 € 2.927,40
6TA75 5-700 TRIFASE	5,50	7,50	3x400	H=ml	68	51	46	41	35	28	21	14	5 gg	Sconto 30 % € 2.108,34 € 1.475,84
