Product: Dab - S4E submersible pump - no motor - Dab - S4 - Submersible pumps

click to zoom the image

Richiesta informazioni veloce

Email per la risposta*

Richiesta*

Devi allegare file o foto? Usa il modulo completo

Dab - Submersible pump bodies

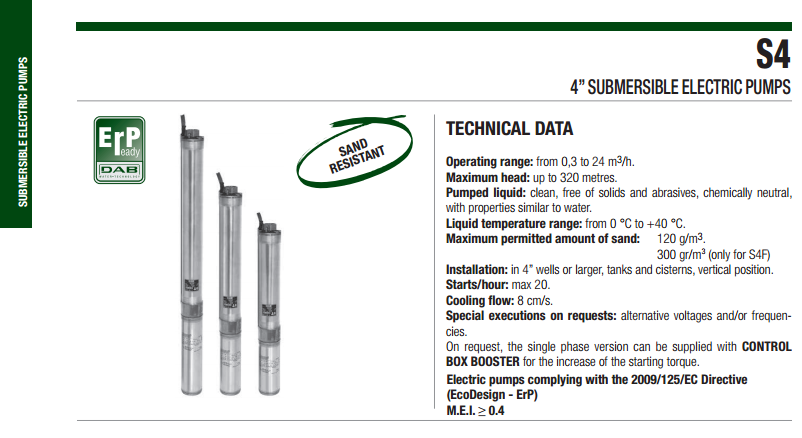

Dab borehole pumps for clean water.

The S4 DAB series in characterized by high performance and efficiency.
They are designed for water boosting, gardening and irrigation, and lifting water from boreholes in domestic and residential, civil and commercial application

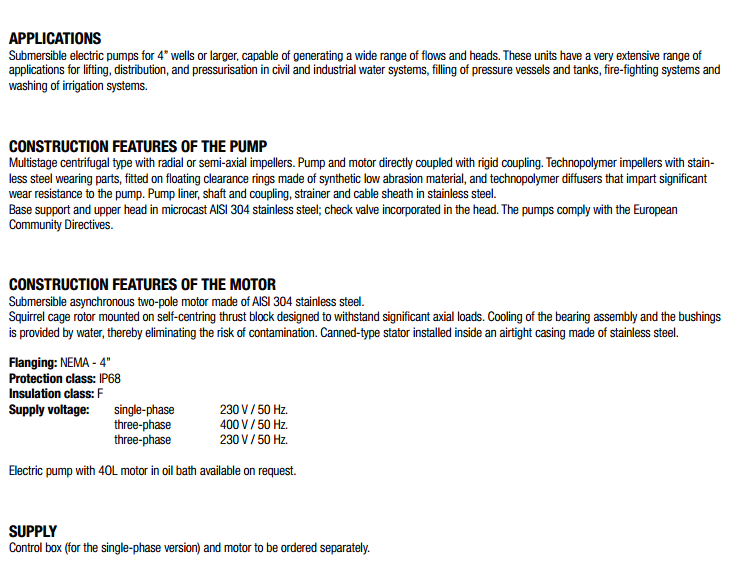

Main features:
Flanging: NEMA - 4”
Max sand content:150gr/m3.

Available the complete S4E submersible pump with 4OL motor.

For more information, please contact us.

The following products models are available for purchase:

Type	Power		Flow rate								VAT EXCLUDED
	kW	Hp	Q=l/min'	0	70	80	100	150	190
	kW	Hp	Q=m3/h	0	4,2	4,8	6	9	11,4
S4E06	0,75	1,00	H=ml	40,5	31,5	30	27	17,6	7,7	4 gg	Sconto 35 % € 217,26 € 141,22
S4E08	1,10	1,50	H=ml	54	42	40	37	23,4	10,3	4 gg	Sconto 35 % € 237,66 € 154,48
S4E12	1,50	2,00	H=ml	81	63	60	55	35,2	15,5	4 gg	Sconto 35 % € 275,40 € 179,01
S4E17	2,20	3,00	H=ml	114,8	89,5	86	78	49,8	21,9	4 gg	Sconto 35 % € 342,72 € 222,77
S4E20	3,00	4,00	H=ml	135	105	101,5	91	58,6	25,7	4 gg	Sconto 35 % € 371,28 € 241,33
S4E23	3,00	4,00	H=ml	155,4	120,5	117	104,5	67,4	29,6	4 gg	Sconto 35 % € 397,80 € 258,57
S4E27	4,00	5,50	H=ml	182,4	141,5	137	122,5	79,2	34,8	4 gg	Sconto 35 % € 428,40 € 278,46
S4E31	4,00	5,50	H=ml	209,4	162	156	140	90,9	39,9	4 gg	Sconto 35 % € 473,28 € 307,63
S4E36	5,50	7,50	H=ml	243,2	188	180	162	105,5	46,5	4 gg	Sconto 35 % € 535,50 € 348,08
S4E42	5,50	7,50	H=ml	283,7	220	211	189	123,2	54	4 gg	Sconto 35 % € 607,92 € 395,15
