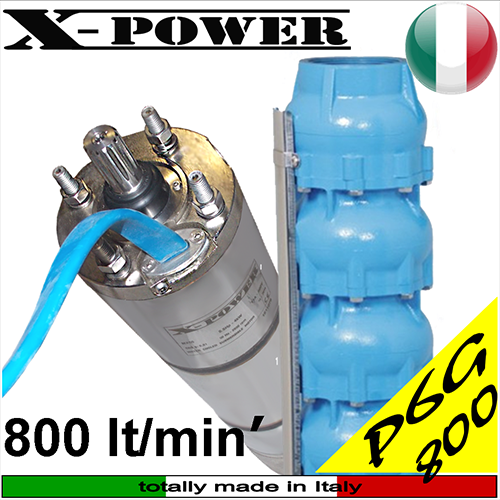

X-Power - P6G SEM submersible well pumps - 800L - X-Power MX6 motors 1

X-Power - P6G SEM submersible well pumps - 800L - X-Power MX6 motors 2

Richiesta informazioni veloce

Email per la risposta*

Richiesta*

Devi allegare file o foto? Usa il modulo completo

Water lifting from wells, Water booster pumps -
P6G SEM 800 pump + MX6 X-Power motor

P = Pippohydro

6 = 6" :151 mm diameter (including the cable protection)
G = Spheroidal cast iron (sand resistant)

Submersible well pump with a maximum flow rate of 800 liters per minute.

The pump and the electric motor are two independent units.

Main Features:
Three-phase power

Optimal hydraulic performance
The pumps can work also in horizontal position
No axial load on the motor
Caution must be used with these submersible pumps: they must be fully submerged
Compared to pumps of the same caliber they can work at highter operating temperatures
High quality construction materials (EN-GJL-250 cast iron, G20Mn5 carbon steel, AISI 316 stainless steel)

Maximum 30 starts per hour

Max depth: 150 m

mandata della tubazione colonna della pompa sommersa x.-power la dicitura comprende i motori sommersi con attacco da standard attacco nema il motore può essere utilizzato per le primarie marche in commercio quadri elettrici alimentazione industriale agricole delle pompe sommerse in ghisa
Motor and pump shipped separately

For more information, please contact us.

Related accessories and products:

The following products models are available for purchase:

	Power		Volts	Flow rate									VAT EXCLUDED
	kW	Hp		Q=l/min'	0	275	400	500	600	700	800
				Q=m3/h	0	16,5	24	30	36	42	48
				Q=lt/sec.	0	4,6	6,7	8,3	10	11,7	13,3
P6G SEM 800/03 + X-POWER MX65 5,50HP TRIFASE	4,00	5,50	3x400	H=m	49	39	34	29	23	16	8	3 gg	Sconto 35 % € 2.860,20 € 1.859,13
P6G SEM 800/05 + X-POWER MX67 7,50HP TRIFASE	5,50	7,50	3x400	H=m	81	65	56	48	38	26	14	3 gg	Sconto 35 % € 3.286,08 € 2.135,95
P6G SEM 800/06 + X-POWER MX610 10,00HP TRIFASE	7,50	10,00	3x400	H=m	97	77	68	58	46	32	16	3 gg	Sconto 35 % € 3.573,50 € 2.322,78
P6G SEM 800/08 + X-POWER MX612 12,50HP TRIFASE	9,20	12,50	3x400	H=m	130	103	90	77	61	42	22	3 gg	Sconto 35 % € 4.082,40 € 2.653,56
P6G SEM 800/10 + X-POWER MX615 15,00HP TRIFASE	11,00	15,00	3x400	H=m	162	129	113	96	77	53	27	3 gg	Sconto 35 % € 4.533,20 € 2.946,58
P6G SEM 800/11 + X-POWER MX617 17,50HP TRIFASE	13,00	17,50	3x400	H=m	178	142	124	106	84	58	30	3 gg	Sconto 35 % € 4.980,22 € 3.237,14
P6G SEM 800/13 + X-POWER MX620 20,00HP TRIFASE	15,00	20,00	3x400	H=m	211	168	146	125	99	69	35	3 gg	Sconto 35 % € 5.475,40 € 3.559,01
P6G SEM 800/16 + X-POWER MX625 25,00HP TRIFASE	18,50	25,00	3x400	H=m	259	206	180	154	122	85	43	3 gg	Sconto 35 % € 6.179,46 € 4.016,65
P6G SEM 800/19 + X-POWER MX630 30,00HP TRIFASE	25,00	30,00	3x400	H=m	308	245	214	182	145	101	51	3 gg	Sconto 35 % € 7.071,68 € 4.596,59
P6G SEM 800/25 + X-POWER MX640 40,00HP TRIFASE	30,00	40,00	3x400	H=m	405	323	281	240	191	132	68	3 gg	Sconto 35 % € 9.105,88 € 5.918,82
