Water lifting from wells, Water booster pumps -

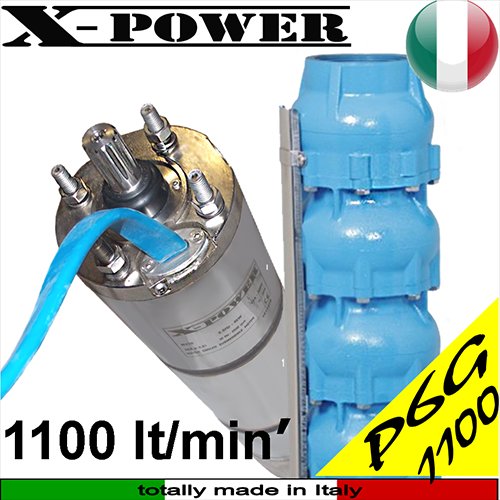

P6G SEM 1100 pump + MX6 X-Power motor

P = Pippohydro

6 = 6" :151 mm diameter (including the cable protection)
G = Spheroidal cast iron (sand resistant)

Submersible well pump with a maximum flow rate of 1100 liters per minute.

The pump and the electric motor are two independent units.

Main Features:
Three-phase power

Optimal hydraulic performance
The pumps can work also in horizontal position
No axial load on the motor
Caution must be used with these submersible pumps: they must be fully submerged
Compared to pumps of the same caliber they can work at highter operating temperatures
High quality construction materials (EN-GJL-250 cast iron, G20Mn5 carbon steel, AISI 316 stainless steel)

Maximum 30 starts per hour

Max depth: 150 m

mandata della tubazione colonna della pompa sommersa x.-power la dicitura comprende i motori sommersi con attacco da standard attacco nema il motore può essere utilizzato per le primarie marche in commercio quadri elettrici alimentazione industriale agricole delle pompe sommerse in ghisa
Motor and pump shipped separately

For more information, please contact us.

Related accessories and products:

The following products models are available for purchase:

	Power		Volts	Flow rate									VAT EXCLUDED
	kW	Hp		Q=l/min'	0	350	650	800	900	1000	1100
				Q=m3/h	0	21	39	48	54	60	66
				Q=lt/sec.	0	5,8	10,8	13,3	15	16,7	18,3
P6G SEM 1100/02 + X-POWER MX65 5,50HP TRIFASE	4,00	5,50	3x400	H=m	33	26	20	17	14	10	6	3 gg	Sconto 35 % € 2.674,98 € 1.738,74
P6G SEM 1100/03 + X-POWER MX67 7,50HP TRIFASE	5,50	7,50	3x400	H=m	49	39	30	25	20	15	9	3 gg	Sconto 35 % € 2.918,44 € 1.896,99
P6G SEM 1100/05 + X-POWER MX610 10,00HP TRIFASE	7,50	10,00	3x400	H=m	82	65	50	41	34	26	15	3 gg	Sconto 35 % € 3.386,60 € 2.201,29
P6G SEM 1100/06 + X-POWER MX612 12,50HP TRIFASE	9,20	12,50	3x400	H=m	98	78	60	50	41	31	18	3 gg	Sconto 35 % € 3.711,68 € 2.412,59
P6G SEM 1100/07 + X-POWER MX615 15,00HP TRIFASE	11,00	15,00	3x400	H=m	114	91	71	58	48	36	21	3 gg	Sconto 35 % € 3.980,20 € 2.587,13
P6G SEM 1100/08 + X-POWER MX617 17,50HP TRIFASE	13,00	17,50	3x400	H=m	130	104	81	66	54	41	24	3 gg	Sconto 35 % € 4.430,44 € 2.879,79
P6G SEM 1100/10 + X-POWER MX620 20,00HP TRIFASE	15,00	20,00	3x400	H=m	163	131	101	83	68	51	30	3 gg	Sconto 35 % € 4.921,28 € 3.198,83
P6G SEM 1100/12 + X-POWER MX625 25,00HP TRIFASE	18,50	25,00	3x400	H=m	196	157	121	99	82	61	36	3 gg	Sconto 35 % € 5.442,78 € 3.537,81
P6G SEM 1100/15 + X-POWER MX630 30,00HP TRIFASE	25,00	30,00	3x400	H=m	245	196	151	124	102	77	45	3 gg	Sconto 35 % € 6.331,78 € 4.115,66
P6G SEM 1100/20 + X-POWER MX640 40,00HP TRIFASE	30,00	40,00	3x400	H=m	326	261	202	165	136	102	60	3 gg	Sconto 35 % € 8.169,70 € 5.310,31
