CLICK HERE TO DISPLAY THE MAIN CATEGORY OF THIS PRODUCT
Special submersible pumps for wells, water boosting

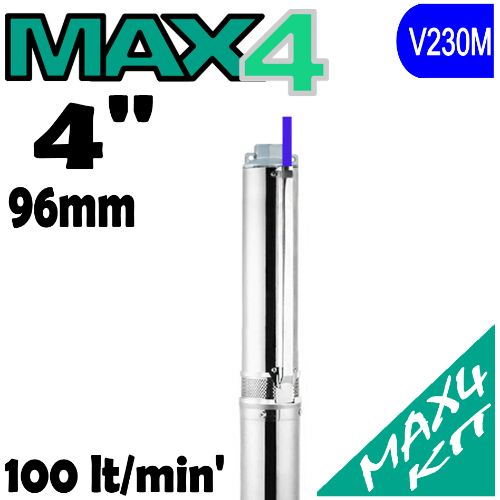

X-Power Max 4 submersible pump

Uncoupled 4" submersible pump with floating impellers.

pretazioni pompe elettropompa sommerse lowara per acque contenenti solidi sabbiosi

Diameter: 98mm

Installation: 4" wells.

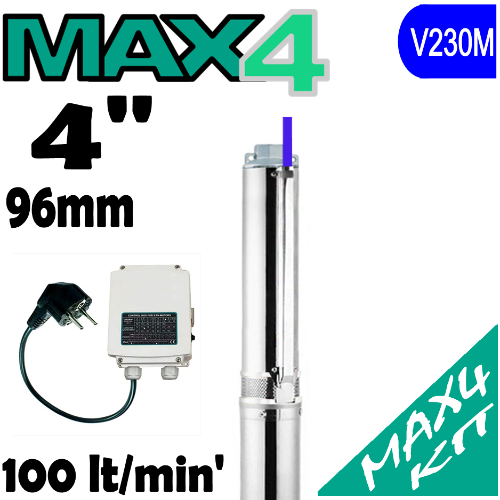

Equipment: 20 meters electric cable, starter panel and plug.

X-Power Max 4 consists of submersible motor with stainless steel cover and submersible pump with stainless steel cover and supports. The floating impellers (independent) allow the submersible pump to pump water with sand up to 300 gr./cubic meter. X-power Max 4 is of a multi-stage series with overlapping impellers, characterized by an excellent flow rate/head ratio.
This product is suitable for small irrigation systems, home water supply, technological applications, and for filling tanks located at high heights.

Max. working pressure: 48 meters (Max4 407)
Max. working pressure: 58 meters (Max4 410)
Max. working pressure: 92 meters (Max4 415)
20 m electric cable and shuko plug supplied as standard
Equipped with starter panel with switch, warning light, condenser and integrated motor protection
Max sand content: 300 g/cu.m
Efficient
Durable

pompa sommersa caprari per pozzi profondi motore per pompa sommersa accoppiamento standard nema 4 pannello di comando avviatore per elettropompa 220/230 volts monofase 1x230
Related products and accessoires:

The following products models are available for purchase:

	Power		Volts	Flow Rate								Shipping	EXCLUSIVE of VAT	Qty
	kW	Hp		Q=cu.m/h	0	1,8	2,4	3	3,6	4,8	6
				Q=l/min'	0	30	40	50	60	80	100
				Q=lt/sec.	0	0,5	0,67	0,83	1,0	1,33	1,67
X-POWER MAX4 4XP07 (1,00HP MONOFASE) XP8010	0,75	1,00	1x230	H=m	74	66	64	59	54	36	14	3 gg	Sconto 20 % € 388,50 € 310,80
X-POWER MAX4 4XP11 (1,50HP MONOFASE) XP8020	1,10	1,50	1x230	H=m	104	95	90	84	76	53	21	3 gg	Sconto 20 % € 441,00 € 352,80
X-POWER MAX4 4XP15 (2,00HP MONOFASE) XP8030	1,50	2,00	1x230	H=m	133	120	115	107	97	68	29	3 gg	Sconto 20 % € 493,50 € 394,80
