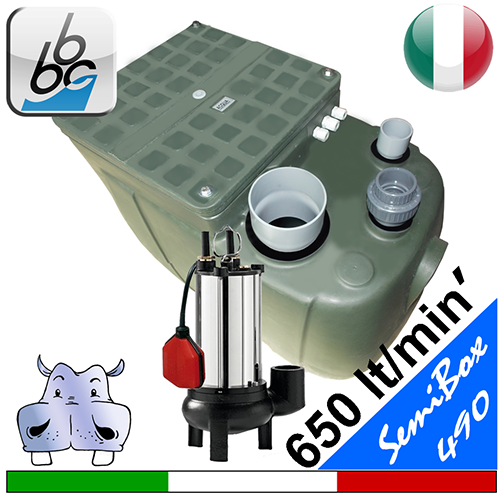

Product: BBC - Semibox 200 automatic lifting station for sewage water with submersible pump of 490 series - BBC - Wastewater lifting stations

click to zoom the image

Email per la risposta*

Richiesta*

Lifting station for waste water and sewage

Nomenclature: Semibox 200

Equipment: submersible pump and float switch (single-phase and three-phase versions available)
650 l/min of maximum capacity

Use: suitable to collect and convey waste and sewage water; advisable when the sewers are higher than the collecting system.

Applications: the collecting tanks can be installed inside garages, basements or underground.

Related products and accessories:

The following products models are available for purchase:

	Power		Capacity (lt) and dimensions of the tank (mm)	Sizing		Flow rate					VAT EXCLUDED
	kW	Hp		Average number of serviced dwellings	Average working height (meters)	Q=l/min'	300	400	650
	kW	Hp		Average number of serviced dwellings	Average working height (meters)	Q=m3/h	18	24	39

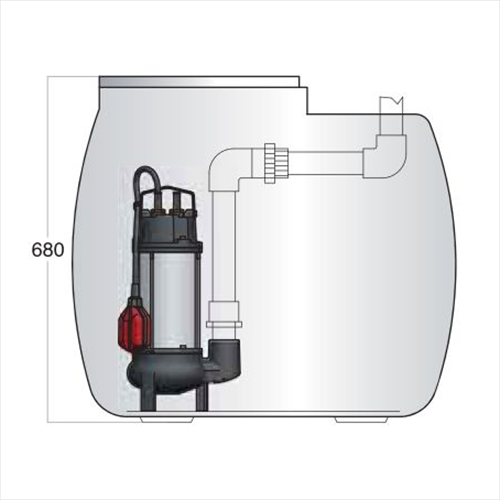

SEMIBOX 490 M+G MONOFASE	1,10	1,50	200lt H680xl500xL790	3 abitaz. 15-18 unità	6,5 ml	H=ml	6,5	5	0,5	5 gg	Sconto 25 % € 1.012,86 € 759,65
SEMIBOX 490 T+G TRIFASE	1,10	1,50	200lt H680xl500xL790	3 abitaz. 15-18 unità	6,5 ml	H=ml	6,5	5	0,5	5 gg	Sconto 25+3 % € 1.141,38 € 830,35
