Product: Italtecnica TopWater pressure switch - high flow - adjustable pump restart pressure from 1Bar to 3Bar - pumps: max 2Hp - Automatic pressure switches

click to zoom the image

Italtecnica TopWater pressure switch - high flow - adjustable pump restart pressure from 1Bar to 3Bar - pumps: max 2Hp 1

Italtecnica TopWater pressure switch - high flow - adjustable pump restart pressure from 1Bar to 3Bar - pumps: max 2Hp 2

Richiesta informazioni veloce

Email per la risposta*

Richiesta*

Devi allegare file o foto? Usa il modulo completo

Accessories for electric pumps (start-stop management)
Adjustable pressure controller

Main features

Function: electric pumps control and protection

Power supply: 230Vac

Start: pressure decrease

Stop: no flow

Pump start regulation: from 1 Bar to 3.5Bar

Pump: Max 2Hp

Analog pressure gauge

Dry running protection: Yes

Restarting: No

Maximum pressure: 10Bar

In & Out connection: 1"1/4 - 1" 1/2 - 2"

Other accessories that you can combine with the product:

Click here for complete kits of pump with presscontrol or inverter

The following products models are available for purchase:


	Description	Max power load kW (HP)	Maximum capacity liters/minute	Shipping	EXCLUSIVE VAT	Qty

P.C.TOP.WATER MONOFASE + BY-PASS 1"1/4	Presscontrol V230M tarabile completo di bypass 1"1/4	1,50 kW (2,00hp)	150 lt/min'	3 gg	Sconto 50 % € 304,20 € 152,10
P.C.TOP.WATER MONOFASE + BY-PASS 1"1/2	Presscontrol V230M tarabile completo di bypass 1"1/2	1,50 kW (2,00hp)	250 lt/min'	3 gg	Sconto 50 % € 332,96 € 166,48
P.C.TOP.WATER MONOFASE + BY-PASS 2"	Presscontrol V230M tarabile completo di bypass 2"	1,50 kW (2,00hp)	360 lt/min'	3 gg	Sconto 50 % € 366,88 € 183,44

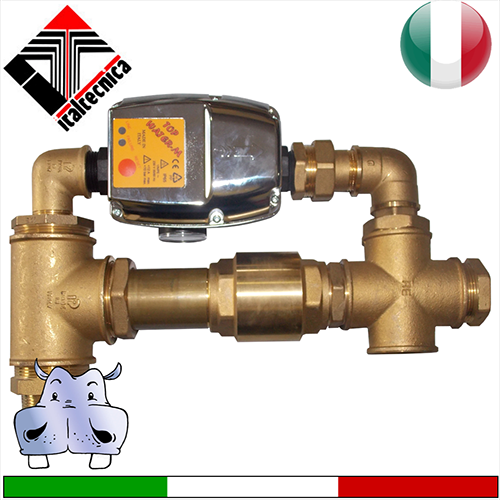

The adjustable TopWater presscontrol is the customized version from Pippohydro of the Brio-2000M. It automatizes the start and stop operations of single-phase electric pumps up to 2HP. The Top-Water can be adjusted by setting the restart of the electric pump from 1.0 Bar to 3.5 Bar. It replaces completely the traditional water system set up consisting on pressure switch and pressure tank. It starts the electric pump after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing).

By-pass: Entirely made of OT58 brass.
