Product: PM Italtecnica Pressure switches for water system applications - Pressure switches and automatic control systems
click to zoom the image
Pressure switches for autoclave systems

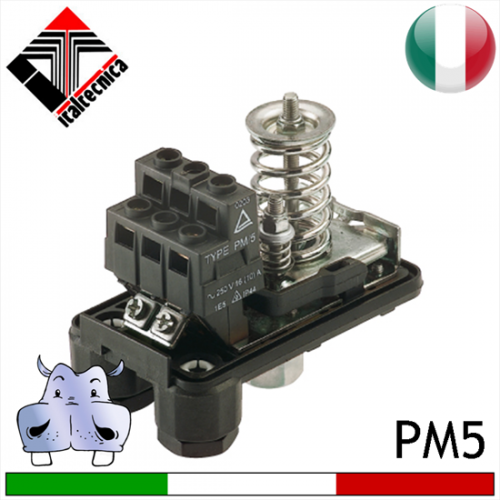

Italtecnica PM pressure switch
The Italtecnica PM switches ensure the starting and stopping of the pump according to the set pressure values.
Electric contacts: normally closed (brass alloy with Ag-Ni surfacing)
Terminals: with M4 screws and 8x8 mm pressure dice
NBR rubber membrane: with textile insert (food grade for PM/5 - PM/6 - PT/5)
Protection class: IP 44
Max ambient temperature: 55°C
Tear resistant cable clamps
SG version: with graduated scale
Rotating nut to facilitate assembly
The following products models are available for purchase:
|
|
Description |
Adjustment range |
Max power load kW (HP) |
|
EXCLUSIVE VAT
|
|
|---|---|---|---|---|---|---|
|
PRESS.PM05G |
Pressostato con dado girevole,taratura di fabbrica 1,4:2,8 Bar | 1:5Bar | 2,00 kW (2,80hp) |
|
|
|
|
PRESS.PM05G.SG |
Pressostato con dado girevole e scala graduata, taratura di fabbrica 1,4/2,8 Bar | 1:5Bar | 2,00 kW (2,80hp) |
|
|
|
|
PRESS.PM12G.SG CON SCALA GRADUATA |
Pressostato con dado girevole e scala graduata, taratura di fabbrica 5/7 Bar | 3:12Bar | 2,00 kW (2,80hp) |
|
|
