Water lifting, pressurisation, water boosting

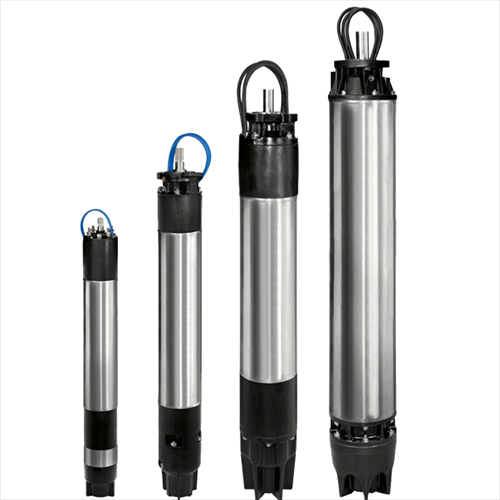

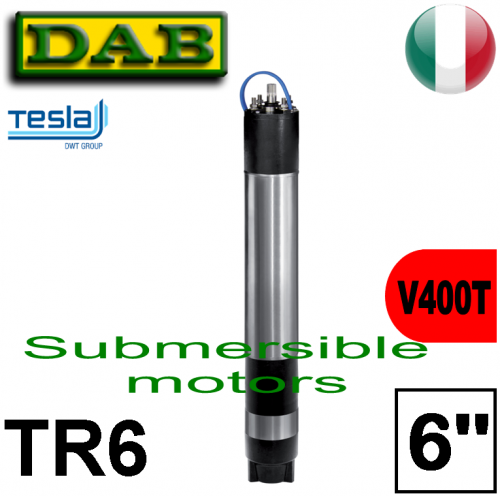

Dab TR6 rewindable submersible asynchronous two-pole electric motor

6” submersed electric motor with silicon carbide mechanical seal. Full AISI 316 stainless steel. Cooled and lubricated with a mix of water and glycol.

Suitable for operation with variable speed drives (VSD or VFD).

This professional motor finds a wide application in industrial sectors and in water systems.

Main features:

Flanging: NEMA 6".

Protection class: IP68.

Cooling flow speed: 0,5 m/s.

Power supply tolerance: + 6 % / -10 %.

Maximum starts: 15/h.

Maximum operating depth: 300 m.

Maximum operating temperature: 60 bar.

Horizontal operation: 7,5 HP - 50 HP.

Kingsbury self-centring thrust bearing.

Available the Dab motor in a three-phase version with STAR-DELTA starting.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

	kW	Hp
Model	Power		Volts	Ampere	Max immersion depth (m)	Rpm	Height (mm)	Diameter (mm)		VAT EXCLUDED
	kW	Hp
TR607	5,50	7,50	3x400	13,70	150	2870	660	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR610	7,50	10,00	3x400	18,20	150	2860	690	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR612	9,20	12,50	3x400	21,70	150	2850	720	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR615	11,00	15,00	3x400	26,20	150	2860	780	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR617	13,00	17,50	3x400	30,50	150	2850	850	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR620	15,00	20,00	3x400	34,80	150	2860	910	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR625	18,50	25,00	3x400	41,40	250	2860	1085	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR630	22,00	30,00	3x400	49,00	250	2880	1195	143	4 gg	Sconto 35 % € 1,00 € 0,65
TR635	26,00	35,00	3x400	58,10	250	2880	1315	143	6 gg	Sconto 35 % € 1,00 € 0,65
TR640	30,00	50,00	3x400	64,90	250	2870	1425	143	6 gg	Sconto 35 % € 1,00 € 0,65
TR650	37,00	50,00	3x400	80,50	250	2860	1425	143	6 gg	Sconto 35 % € 1,00 € 0,65
