Water lifting, pressurisation, water boosting

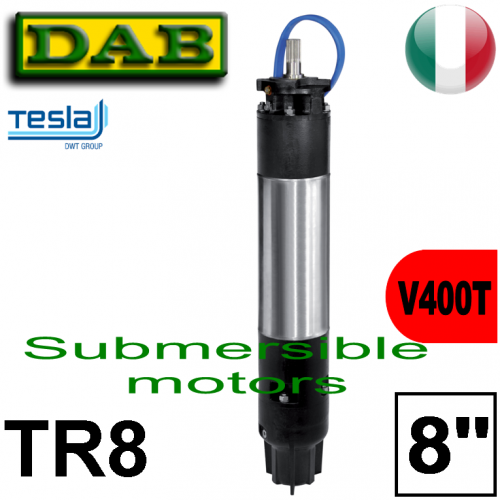

Dab TR8 rewindable submersible asynchronous two or four-pole electric motor

Rewindable 8" submersible asynchronous two or four-pole electric motor, with a silicon carbide mechanical seal.It is cooled and lubricated with a mix of water and glycol.

Suitable for operation with VFDs.

This professional motor finds a wide application in industrial sectors and in water systems.

Main features:

Flanging: NEMA 8".

Protection class: IP58 (IP68 on request).

Cooling flow speed: 0,5 m/s.

Power supply tolerance: + 6 % / -10 %.

Max. starts: 10/h.

Max operating depth: 300 m.

Max operating temperature: 60 bar.

Horizontal operation: 30 HP - 125 HP.

Available in the version with STAR-DELTA starting.

Related products and accessoires

For more information, please contact us.

The following products models are available for purchase:

	kW	Hp
Model	Power		Volts	Ampere	Maximum immersion depth (m)	Rpm	Height (mm)	Diameter (mm)		VAT EXCLUDED
	kW	Hp
TR8100	75,00	100,00	3x400	145,00	250	2910	1590	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR8125	92,00	125,00	3x400	177,00	250	2890	1830	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR8150	110,00	150,00	3x400	213,00	250	2890	2060	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR840	30,00	40,00	3x400	61,00	250	2890	1110	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR850	37,00	50,00	3x400	75,00	250	2890	1160	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR860	45,00	60,00	3x400	92,00	250	2910	1270	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR875	55,00	75,00	3x400	109,00	250	2900	1350	191	7 gg	Sconto 35 % € 1,00 € 0,65
TR885	63,00	85,00	3x400	126,00	250	2910	1490	191	7 gg	Sconto 35 % € 1,00 € 0,65
