WAS Low voltage GSM level alarm with backup battery
click to zoom the image

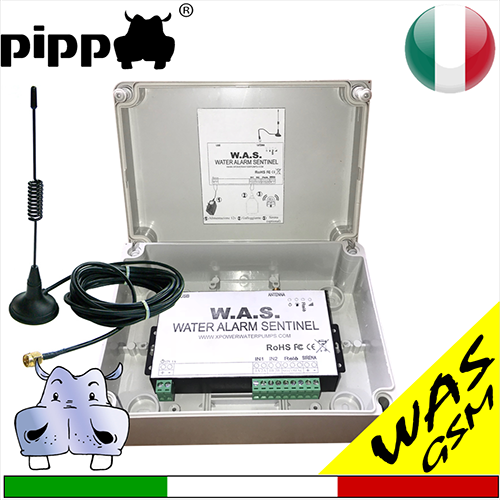

WAS Low voltage GSM level alarm with backup battery 1

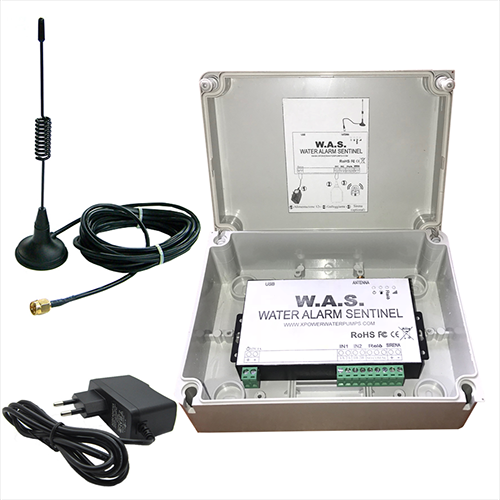

WAS Low voltage GSM level alarm with backup battery 2

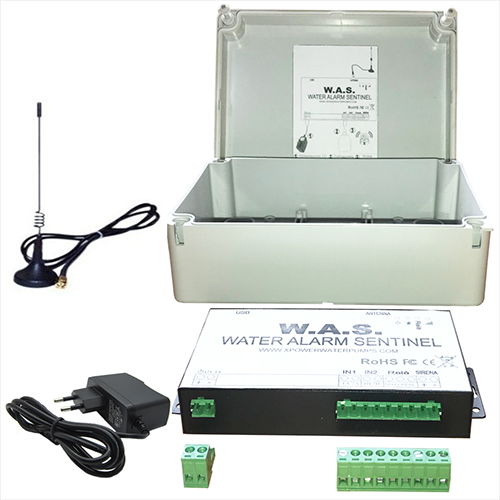

WAS Low voltage GSM level alarm with backup battery 3
PDF Icon
Manuale Tecnico

Richiesta informazioni veloce

Devi allegare file o foto? Usa il modulo completo

CLICK HERE TO DISPLAY THE MAIN CATEGORY OF THIS PRODUCT
Remote low-power GSM water level alarm with backup battery

With the W.A.S. GSM level alarm signaler you will receive a text message, when the liquid level reaches the alarm level. After receiving the signal, you can operate a device, like an electric pump or a solenoid valve, from the place where you are,  via smartphone.


Nomenclature: Water Alarm Sentinel (W.A.S.)
Voltage: 220V 50/60Hz
Number of inputs: 2
Number of outputs: 1 relay output (NO, COM, NC) max load 7A
Siren output: 12V 1A
Buffer Battery: Yes (3.7V 900mAh)

Combinable with the following electrical panels for sewers:
SEWAGE 648 control panel (1 single-phase pump)
SEWAGE 658 control panel (2 single-phase pumps)
SEWAGE 649 control panel (1 single-phase pump)
SEWAGE 659 control panel (2 single-phase pumps)



  Related products and accessoires:

 galleggiante a pera elettrico multicontact sewage orange per acque refle e chiare




                                           andoid app was
Click on the image to download the free app for Android

The following products models are available for purchase:

pannello segnalazione allarme livello

 Description



Shipping

 EXCLUSIVE of VAT






Qty

REMOTE ALARM GSM WAS BOX NON DISPONIBILE

ALLARME GSM WAS COMPLETO DI BATTERIA TAMPONE

3 gg

Sconto 28 %
€ 315,18
€ 226,93













WATER ALARM SENTINEL
Main features:

  • 12VDC 1A siren output
  • Power LED indicator
  • Warning LED
  • Relay LED
  • Gsm signal LED
  • Backup battery
  • Cover: thermoplastic
  • Protection class: IP65
  • Operating temperature: -20°C/+60 °C
  • Frequency:  GSM
  • Quad-band: 850/900/1800/1900MHz



Main uses:

  • Alarm signaller of maximum level
  • Alarm signaller of minimum level

Operation:
  • SIM with a text message plan is required

  • Android app


    andoid app was
    Click on the image to download the free app for Android

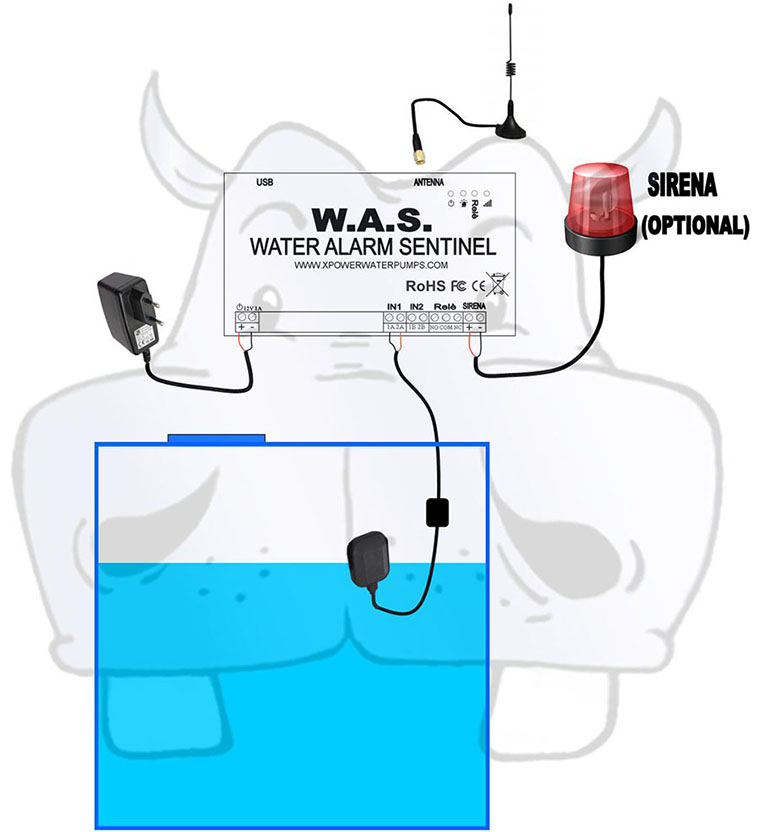

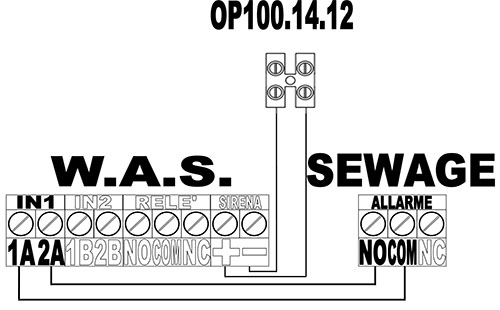

  • schema collegamento allarme per fognature

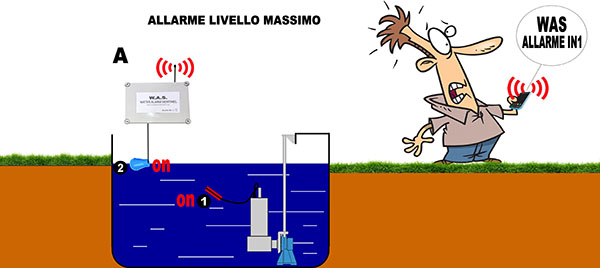

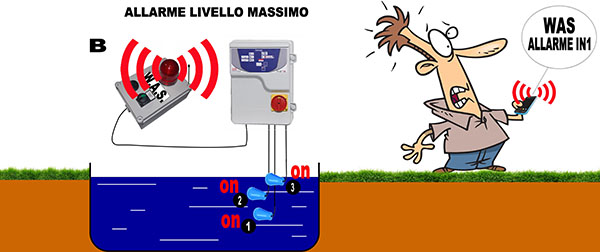

    esempio applicazione allarme gms was wter alarm sentinel in out pompe per fognatura



    was piu quadro sewage sms allarme

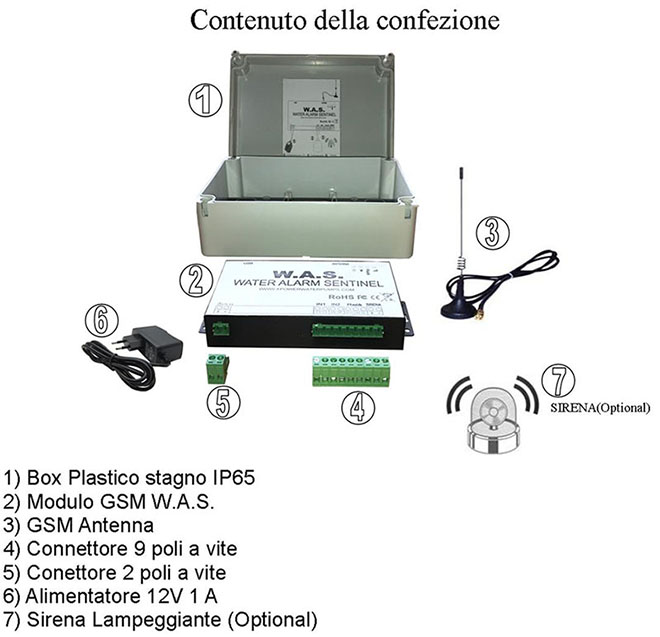

    CONTENUTO DELLA CONFEZIONE MODULO ALLARME GSM WAS PER SERBATOIO, CISTERNA ACQUE REFLUE




  •
