Product: Coelbo Switchmatic 2 electronic pressure switch - Pressure switches and automatic control systems
Electronic pressure switches
Switchmatic2 Coelbo pressure switch
Max. pump power: 3Hp
Function: start & stop pump management/cut-in and cut-out pressure setting
Max. pressure regulation: from 1 bar to 8 bar
Min. pressure regulation: from 0.5Bar to 7Bar
Measurement of instantaneous pressure
Dry running protection
Overcurrent protection
ART function (Automatic Reset Test)
The following products models are available for purchase:
|
|
Description |
Starting pressure range |
Max power load kW (HP) |
|
EXCLUSIVE VAT
|
|
|---|---|---|---|---|---|---|
|
SWITCHMATIC1.0 NEW MONOFASE XP1995 |
Pressostato elettronico di comando e protezione da sovracorrente - protezione da start-stop frequenti - protezione da marcia a secco - possibilità di sincronizzazione con un altro pressostato Switchmatic2 | 0,5Bar:7Bar | 2,2kW (3hp) |
|
|
|
|
SWITCHMATIC2.0 NEW MONOFASE C/PROTEZIONE AMPEROMETRICA XP1996 |
Pressostato elettronico di comando e protezione da sovracorrente - protezione da start-stop frequenti - protezione da marcia a secco - possibilità di sincronizzazione con un altro pressostato Switchmatic2 | 0,5Bar:7Bar | 2,2kW (3hp) |
|
|
.png)

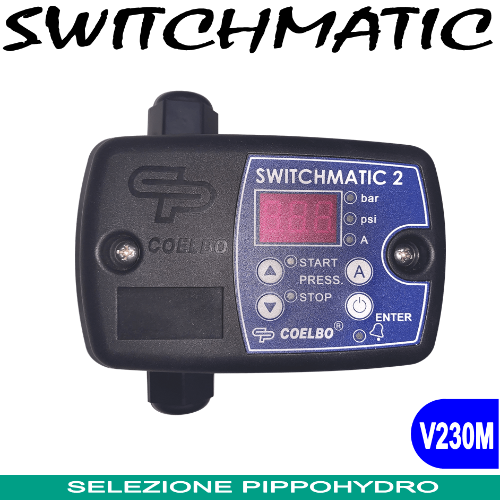

COELBO SWITCHMATIC ELECTRONIC PRESSURE SWITCH
The Switchmatic2 is a pressure switch branded Coelbo. It is charcaterized by an integrated digital pressure gauge, overcurrent, dry-running and fast cycling protection.
It is designed to manage the start and stop of one or two pumps. This pressure switch operates as a differential pressure switch, as an inverted pressure switch, or just with maximum or minimum pressures. Cut-in and cut-out pressure can be set easily through the friendly display. Wiring is carried out identically to a conventional electromechanical switch.
