Constant pressure variable speed system for submersible pumps.
Nomenclature: Easy Max
Company: Pippohydro
Function: constant pressure management
Available versions: single-phase/three-phase & three-phase/three-phase Cooling: through the air forced by the motor Adjustment pressure range: from 0.5 Bar to 10 Bar (16 Bar on request) Installation: wall-mouting and pump installation Dry running protection: Yes
Expansion vessel/tank: obligatory (from 2 to 150 L)
Leakages monitoring
Anti-seize function
EMC filter as standard for installations up to 100 meters (pump/VFD) Equipment included: wall mounting bracket, trasducer, electric cables and schuko plug
Why should you add the expansion vassel to the frequency inverter drive system?
The basic plant does not require the use of the pressure tank/vassel. But if you want to maximize the energy savings and the duration of the electric pump, it's necessary to add an expansion tank. In fact, the continuous and repeated starts of the electric pump (due to small withdrawals and/or water leaks in the water system) are avoided by using a water tank;
Decreasing the start/stop of the electric pump:
1) Decreases energy consumption
2) Extends the life of the electric pump
|
|
|
Inverter power supply |
Pump power supply |
Max power
load
(KW)
|
Max power
load
(A)
|
|
VAT EXCLUSIVE
|
|
|---|---|---|---|---|---|---|---|
|
INVERTER EASYMAX 1,5KW MM C/TRASDUTTORE 10BAR XP6586 |
V230 Monofase | V230 Monofase | 1,5 kW | 12,00 A |
Sconto 30+3 % |
|
|
|
INVERTER EASYMAX 1,1KW MT C/TRASDUTTORE 10BAR XP6714 |
V230 Monofase | V230 Trifase | 1,1 kW | 6,00 A |
Sconto 30 % |
|
|
|
INVERTER EASYMAX 1,5KW MT C/TRASDUTTORE 10BAR XP6715 |
V230 Monofase | V230 Trifase | 1,5 kW | 6,80 A |
Sconto 30 % |
|
|
|
INVERTER EASYMAX 2,2KW MT C/TRASDUTTORE 10BAR XP6409 |
V230 Monofase | V230 Trifase | 2,2 kW | 9,60 A |
Sconto 30 % |
|
|
|
INVERTER EASYMAX 1,5KW TT C/TRASDUTTORE 10BAR XP6716 |
V400 Trifase | V400 Trifase | 1,5 kW | 4,30 A |
Sconto 25 % |
|
|
|
INVERTER EASYMAX 2,2KW TT C/TRASDUTTORE 10BAR XP6703 |
V400 Trifase | V400 Trifase | 2,2 kW | 6,10 A |
Sconto 25 % |
|
|
|
INVERTER EASYMAX 4KW TT C/TRASDUTTORE 10BAR XP6410 |
V400 Trifase | V400 Trifase | 4 kW | 9,70 A |
Sconto 25 % |
|
|
|
INVERTER EASYMAX 5,5KW TT C/TRASDUTTORE 10BAR XP6717 |
V400 Trifase | V400 Trifase | 5,5 kW | 14,00 A |
Sconto 25 % |
|
|
|
INVERTER EASYMAX 7,5KW TT C/TRASDUTTORE 10BAR XP6718 |
V400 Trifase | V400 Trifase | 7,5 kW | 18,00 A |
Sconto 25 % |
|
.png)

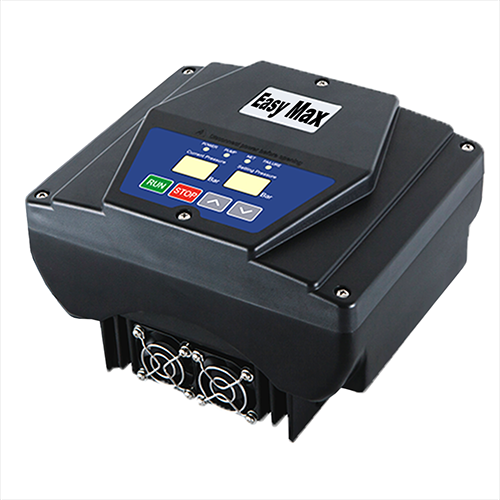

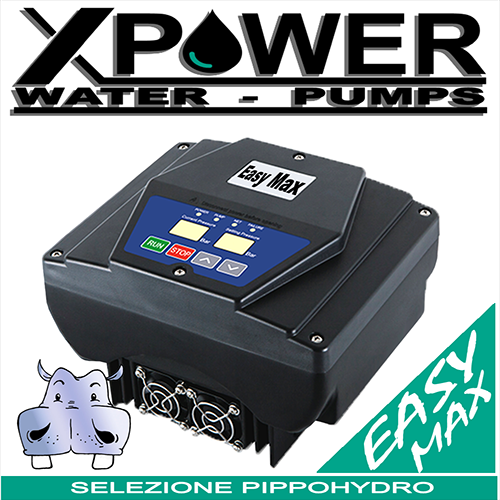

EASY MAX WALL INVERTER DRIVE
Variable-frequency drives allow the user to control the speed of the motor or pump to meet with the exact demands of the system or process that it carries out.
Compared to the standard water-cooled VFDs, the new EasyMax wall drive differs for the typical installation with pressure transducer separate from the inverter. The VFD cab be mount on the wall, on the terminal block of the surface pumps or on the delivery manifold of the booster unit (by ordering the pipe bracket kit). The EasyMax variable frequency drives guarantee reliability. They are very efficient with slightly dirty waters.
If you combine an expansion vessel with the VFD you get:
- diminution of energy costs
Electric pumps complementary to the product
EasyMax is a single-phase/three-phase (ST) or three-phase/three-phase (TT) VFD,
therefore it can only be combined with 3x400 three-phase surface or submersible pumps.
Contact us via mail for information and free and impartial advice
info@pippohydro.com
Pressure Tanks:
Elbi expansion tanks D series
Elbi expansion tanks DV series
Expansion vessels up to 36 liters
Base expansion tanks from 36 to 150 liters liters
Global C2 LITE floor standing expansion tanks
Complete your system with the help of Pippohydro
Click on the icon to view the product
Choose the frequency inverter: an efficient way for energy saving
