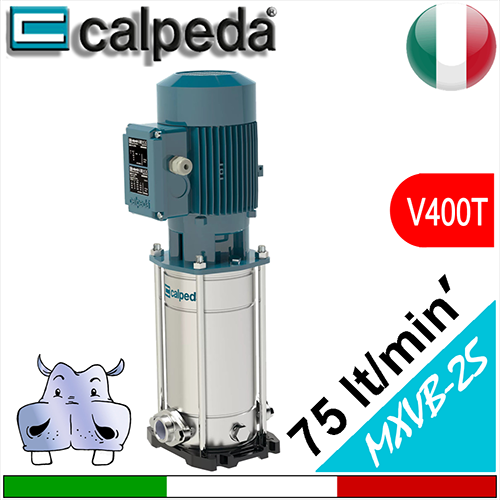

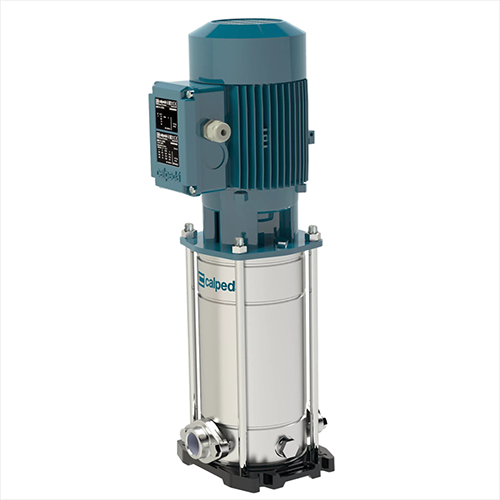

Product: Calpeda MXV-B 25 vertical multistage pumps - 400 Vac three-phase power supply - Calpeda - MXV-B vertical, silent surface pumps
click to zoom the image
|
Domestic water supply
Close-coupled vertical multistage stainless steel pumps
Nomenclature: MXV-B25
Pump body: AISI304 stainless steel
Power: from 1.00 to 2.00HP
Power supply: three-phase
Ports: 1" in-line
Seal: alumina ceramic / carbon / EPDM
Shaft: aisi303 stainless steel
Liquid temperature: from -15 °C up to +90 °C
Environment temperature: up to 40 ° C
Max. permissible pressure in pump casing: 16 bar
Applications: Domestic, agricultural and industrial use, for pressure-boosting systems, fire-fighting systems

|
|||
|
|
Power |
Volts |
Flow rate |
|
VAT EXCLUDED
|
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
kW |
Hp |
Q=l/min' |
0 | 16,6 | 33,3 | 41,6 | 50 | 66,6 |
75 |
|||||
|
Q=m3/h |
0 | 1 | 2 | 2,5 | 3 | 4 |
4,5 |
|||||||
|
MXV-B 25-203 TRIFASE |
0,75 |
1,00 |
3x400 |
H=ml |
34 | 32 | 28 | 26 | 23,5 | 17 |
12,5 |
Sconto 50 % |
|
|
|
MXV-B 25-204 TRIFASE |
0,75 |
1,00 |
3x400 |
H=ml |
44 | 42,5 | 37,5 | 34,5 | 31 | 22,5 |
17 |
Sconto 50 % |
|
|
|
MXV-B 25-205 TRIFASE |
0,75 |
1,00 |
3x400 |
H=ml |
56 | 53 | 47 | 43 | 39 | 28 |
21 |
Sconto 50 % |
|
|
|
MXV-B 25-206/A TRIFASE |
1,10 |
1,50 |
3x400 |
H=ml |
68 | 63,5 | 56 | 51,5 | 46,5 | 34 |
25 |
Sconto 50 % |
|
|
|
MXV-B 25-207/A TRIFASE |
1,10 |
1,50 |
3x400 |
H=ml |
79,5 | 74 | 65,5 | 60 | 54,5 | 39,5 |
30 |
Sconto 50 % |
|
|
|
MXV-B 25-208/A TRIFASE |
1,50 |
2,00 |
3x400 |
H=ml |
91 | 85 | 75 | 69 | 62 | 45,5 |
34 |
Sconto 50 % |
|
|
|
MXV-B 25-210/A TRIFASE |
1,50 |
2,00 |
3x400 |
H=ml |
114 | 106 | 94 | 86 | 78 | 57 |
42 |
Sconto 50 % |
|
|
