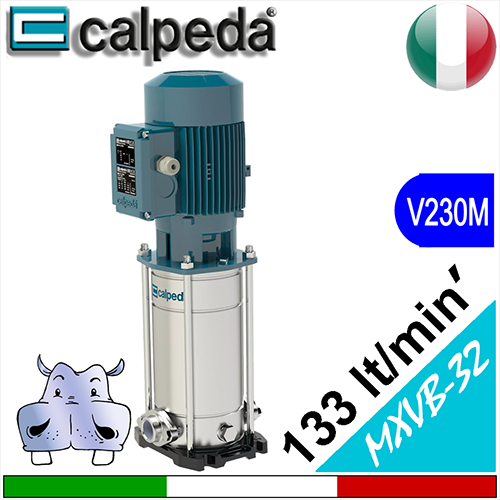

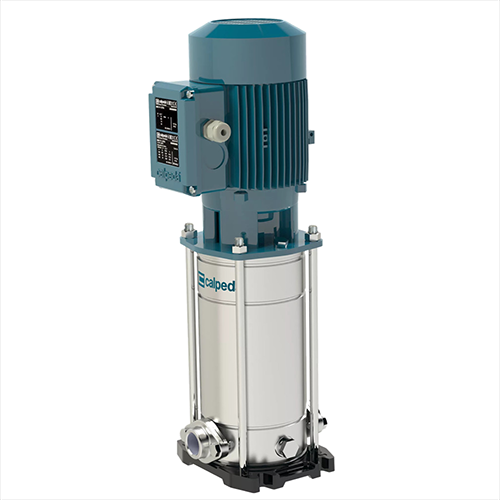

Product: Calpeda MXV-BM 32 vertical multistage pumps - single-phase power supply - Calpeda - MXV-B vertical, silent surface pumps
click to zoom the image
|
Domestic water supply
Close-coupled vertical multistage stainless steel pumps
Nomenclature: MXV-B 32
Pump body: AISI304 stainless steel
Power: from 1.00 to 2.00HP
Power supply: single-phase
Ports: 1" 1/4 in-line
Seal: alumina ceramic / carbon / EPDM
Shaft: aisi303 stainless steel
Liquid temperature: from -15 °C up to +90 °C
Environment temperature: up to 40 ° C
Max. permissible pressure in pump casing: 16 bar
Applications: Domestic, agricultural and industrial use, for pressure-boosting systems, fire-fighting systems.
|
|||
|
Power |
Volts |
Flow rate |
VAT EXCLUDED
|
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
kW |
Hp |
Q=l/min' |
0 | 41,6 | 50 | 75 | 100 | 116,6 |
133,3 |
|||||
Q=m3/h |
0 | 2,5 | 3 | 4,5 | 6 | 7 |
8 |
|||||||
MXV-BM 32-403 MONOFASE |
0,75 |
1,00 |
1x230 |
H=ml |
34 | 31 | 30,5 | 26,5 | 21 | 17 |
11,5 |
Sconto 50 % |
|
|
MXV-BM 32-404 MONOFASE |
1,10 |
1,50 |
1x230 |
H=ml |
45 | 41,5 | 40 | 34,5 | 27,5 | 22 |
14,5 |
Sconto 50 % |
|
|
MXV-BM 32-405 MONOFASE |
1,10 |
1,50 |
1x230 |
H=ml |
56 | 51,5 | 50 | 43,5 | 34,5 | 27,5 |
18,5 |
Sconto 50 % |
|
|
MXV-BM 32-406 MONOFASE |
1,50 |
2,00 |
1x230 |
H=ml |
68 | 62 | 60 | 52,5 | 42 | 33,5 |
22,5 |
Sconto 50 % |
|
|
MXV-BM 32-407 MONOFASE |
1,50 |
2,00 |
1x230 |
H=ml |
79,5 | 72,5 | 70,5 | 61,5 | 49 | 39 |
26,5 |
Sconto 50 % |
|
