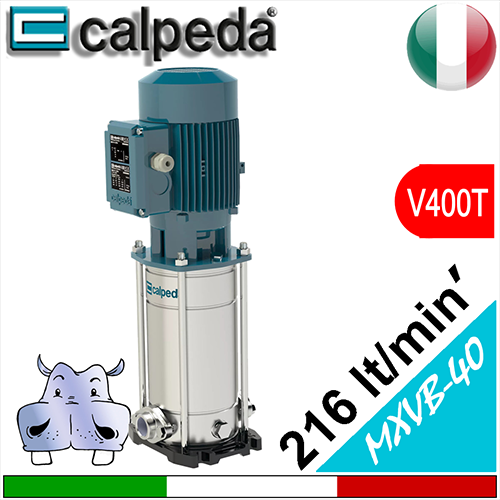

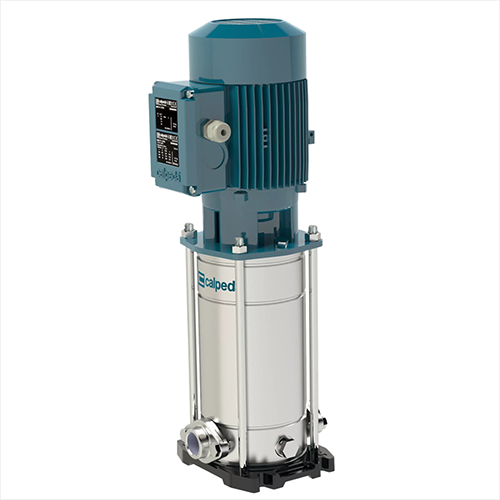

Product: Calpeda MXV-B 40 vertical multistage pumps - 400 Vac three-phase power supply - Calpeda - MXV-B vertical, silent surface pumps
click to zoom the image
|
Domestic water supply
Close-coupled vertical multistage stainless steel pumps
Nomenclature: MXV-B 40
Pump body: AISI304 stainless steel
Power: from 1.50 to 5.00HP
Power supply: three-phase
Ports: 1" 1/2" in-line
Seal: alumina ceramic / carbon / EPDM
Shaft: aisi303 stainless steel
Liquid temperature: from -15 °C up to +90 °C
Environment temperature: up to 40 ° C
Max. permissible pressure in pump casing: 16 bar
Applications: Domestic, agricultural and industrial use, for pressure-boosting systems, fire-fighting systems.
|
|||
|
Power |
Volts |
Flow rate |
VAT EXCLUDED
|
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
kW |
Hp |
Q=l/min' |
0 | 83,3 | 100 | 150 | 183,3 | 200 |
216,6 |
|||||
Q=m3/h |
0 | 5 | 6 | 9 | 11 | 12 |
13 |
|||||||
MXV-B 40-803/A TRIFASE |
1,10 |
1,50 |
3x400 |
H=ml |
35,5 | 32,5 | 31,5 | 28 | 22,5 | 19,5 |
15,5 |
Sconto 50 % |
|
|
MXV-B 40-804/A TRIFASE |
1,50 |
2,00 |
3x400 |
H=ml |
47 | 43 | 42 | 37 | 30 | 26 |
21 |
Sconto 50 % |
|
|
MXV-B 40-806/B TRIFASE |
2,20 |
3,00 |
3x400 |
H=ml |
71 | 65 | 63 | 56 | 45 | 39 |
31 |
Sconto 50 % |
|
|
MXV-B 40-808/A TRIFASE |
3,00 |
4,00 |
3x400 |
H=ml |
95 | 87 | 85 | 75 | 60 | 51 |
42 |
Sconto 50 % |
|
|
MXV-B 40-810/B TRIFASE |
3,70 |
5,00 |
3x400 |
H=ml |
119 | 109 | 106 | 94 | 75 | 64 |
52 |
Sconto 50 % |
|
